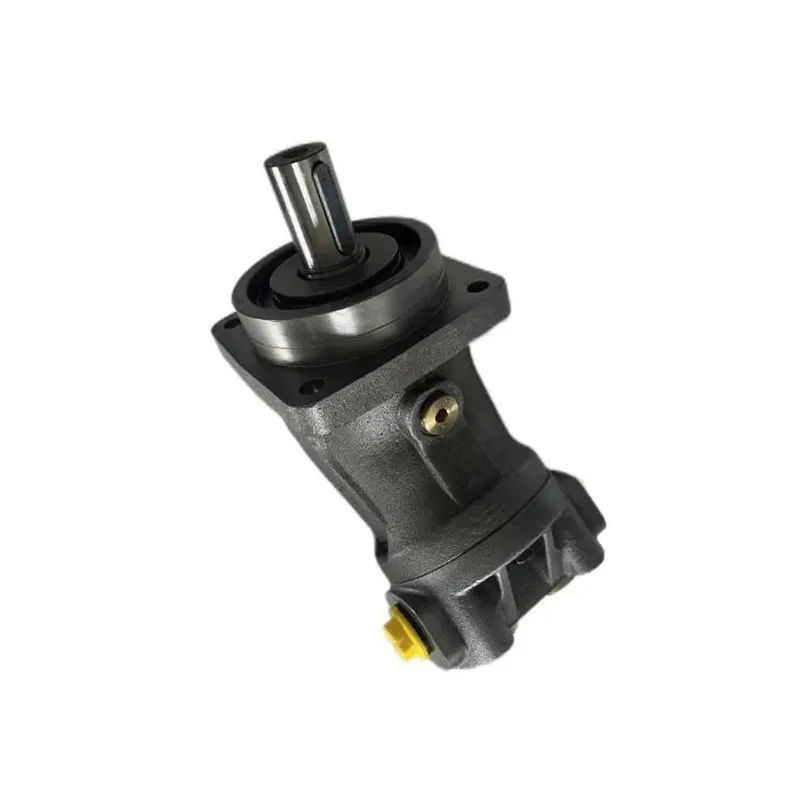

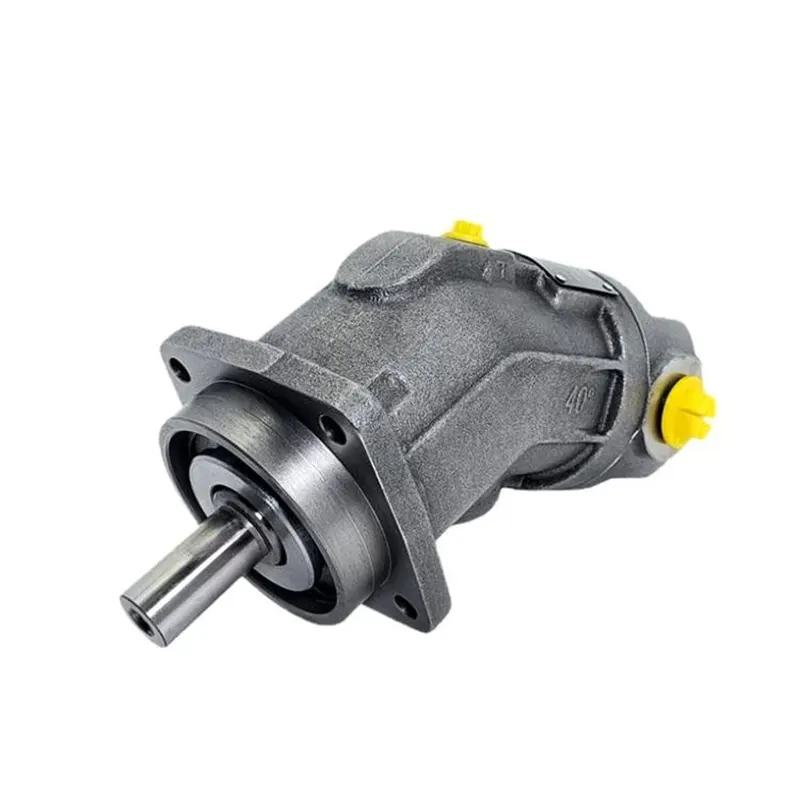

A2Fo Fixed Displacement Piston Pump Uchida Hydraulic Axial Piston Pump with High Efficiency by Rexroth

Pump Type	Piston Pump	Operating Pressure	350 bar
Displacement	45/56/63/80/90/107/125	Number of stages	1 Stage
Max. Horsepower	170-335HP	Connection Size	SAE 3/4 inch to SAE 1-1/4 inch
Warranty	1 Year	Showroom Location	no
Place of Origin	China	Weight	32
Type	Hydraulic Motors	Product name	A2FO A2FM Rexroth Hydraulic Motor
Rotation	bidirectional;clockwise;CCW	Shaft	Splined Shaft DIN5480/ Parallel keyed shaft
Material	Cast Iron	Application	Construction Machinery / Industrial Equipment
Connection Size	SAE Standard Flange	Port Connection	SAE J518
Inlet/Outlet Port	SAE 3/4"-11/4"

Selling Units	Single item	Single package size	100X100X100 cm
Single gross weight	200.0 kg

Quantity (pieces)	1 - 1,000	> 1,000
Lead time (days)	5	To be negotiated

100% Seamless Interchangeability Our A2FO series is engineered to be 1:1 interchangeable with Rexroth standards. Dimensions, mounting flanges, and performance curves match original specifications, ensuring a "plug-and-play" replacement for your existing hydraulic systems without modification.
High Pressure & Efficiency (Expertise) Designed with a sophisticated bent-axis axial piston structure, this pump operates reliably at nominal pressures up to 400 bar (40 MPa). The optimized power-to-weight ratio ensures maximum volumetric efficiency and high rotation speeds for demanding industrial tasks.
Premium Material & Durability (Trust) We use high-grade, wear-resistant materials and precision CNC machining. Equipped with heavy-duty bearings and reinforced seals, our pumps offer an extended service life and stable performance even in harsh environments like mining or construction.
100% Factory Performance Testing (Experience) Every unit undergoes rigorous pressure and flow testing on our professional hydraulic test benches before shipping. We ensure zero leakage and optimal noise control, providing you with a reliable alternative that meets international quality standards.
Versatile Application & Global Support Ideal for open-circuit hydraulic systems in construction machinery (JCB, CAT compatible), injection molding, and agricultural equipment. We provide a 12-month warranty and professional technical support to ensure your operations never stop.
