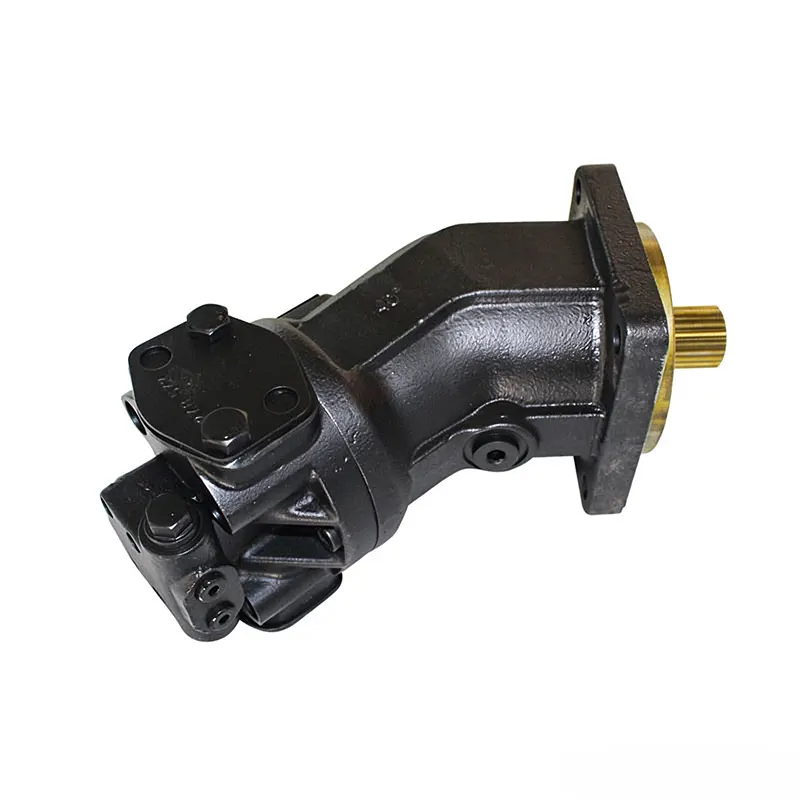

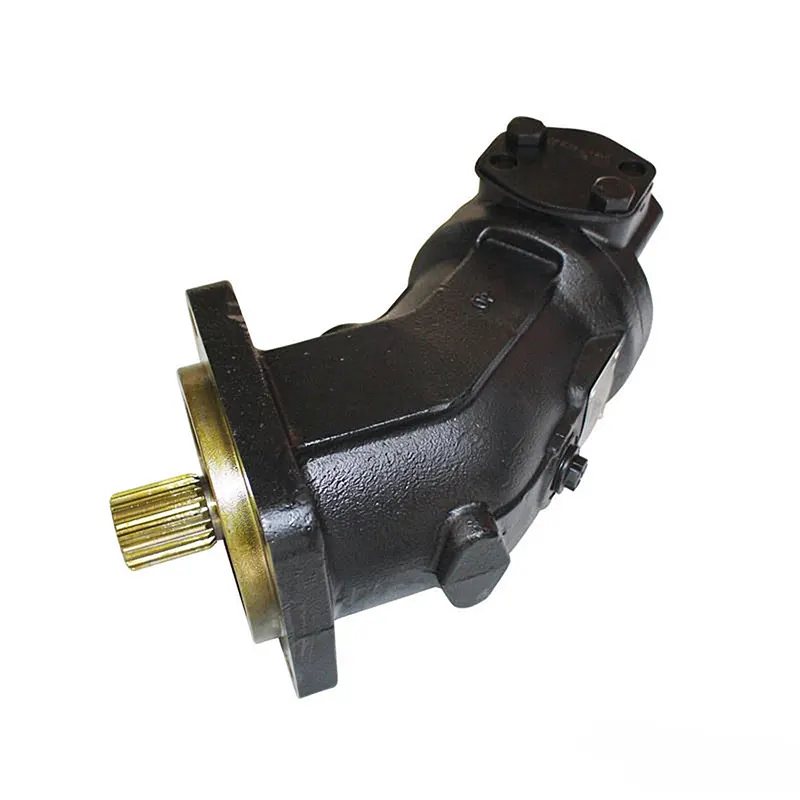

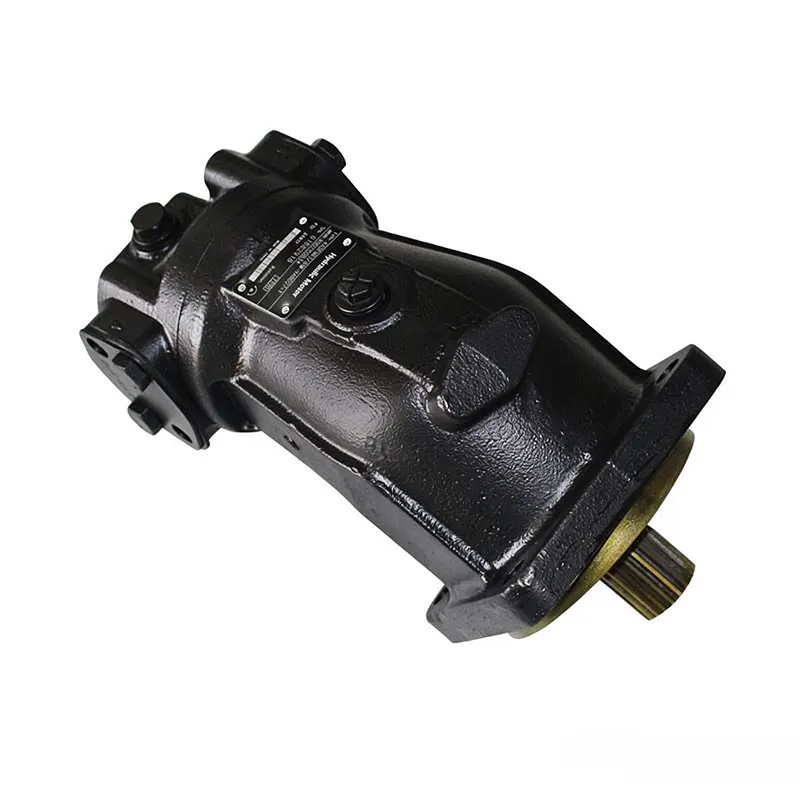

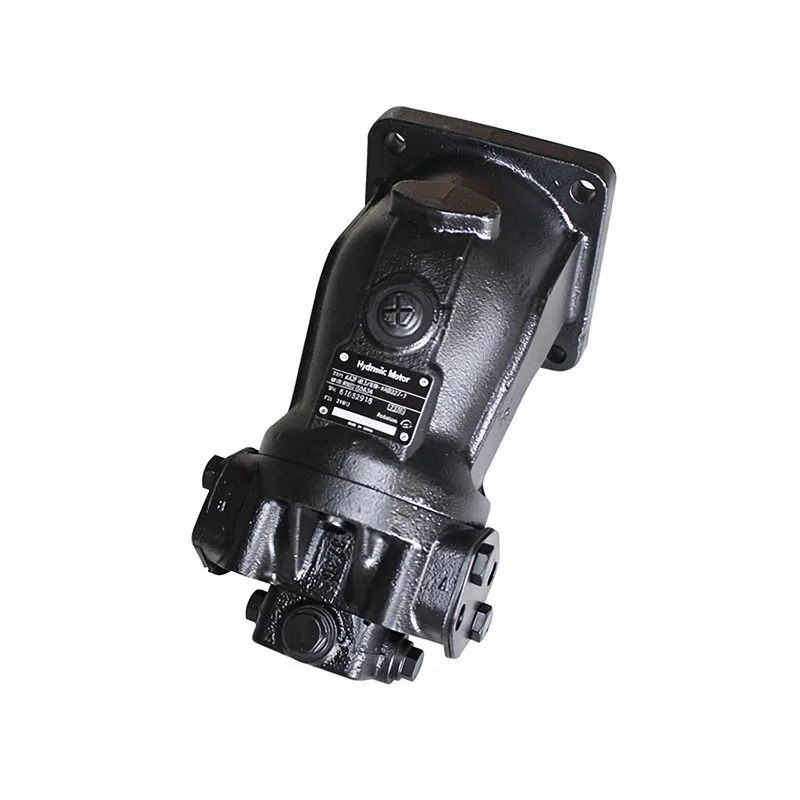

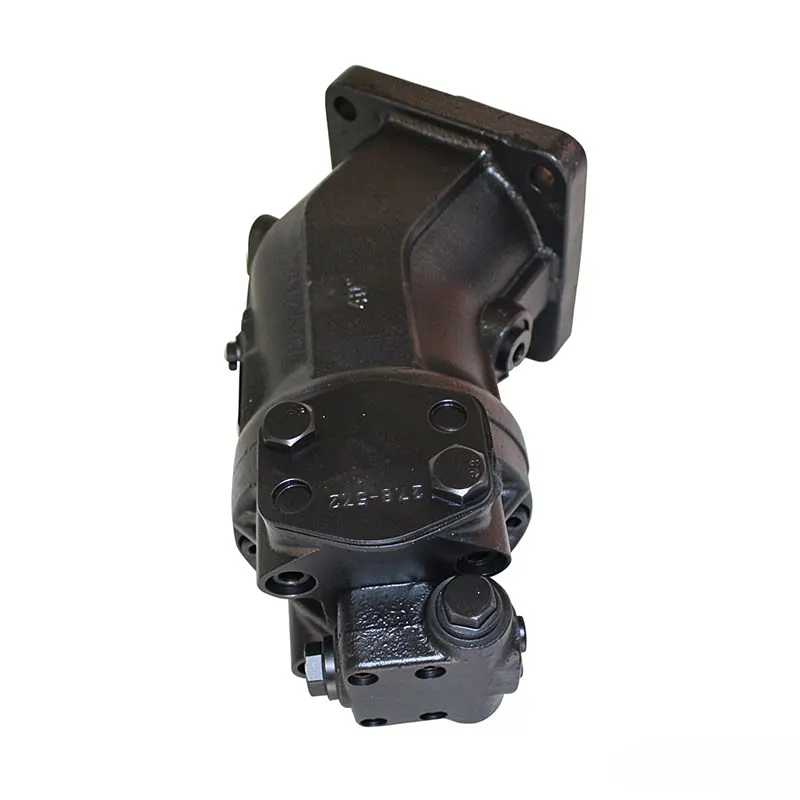

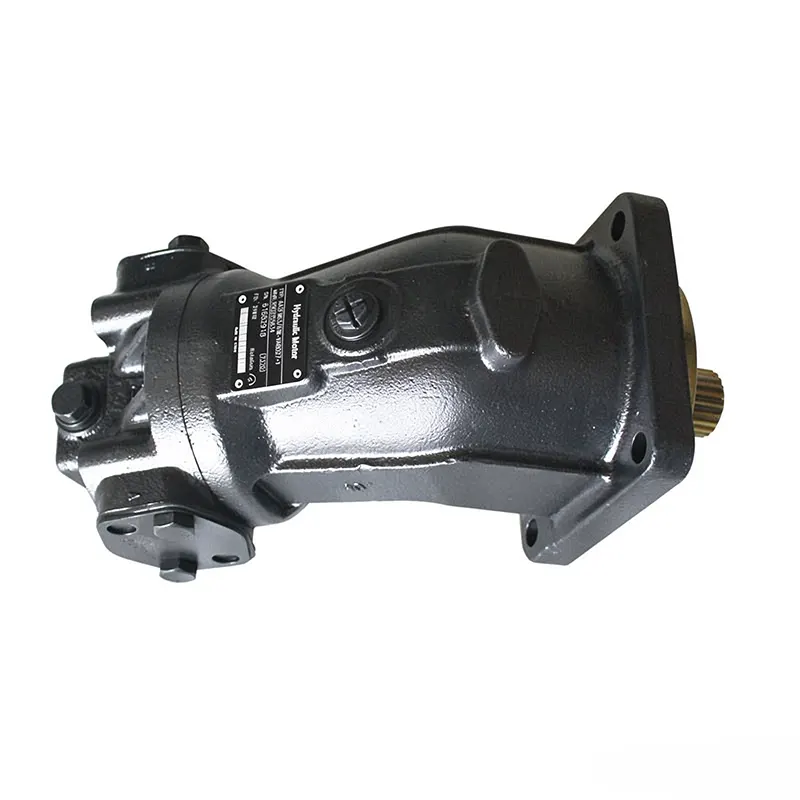

067925005 A2F16 Axial Piston Hydraulic Unit Replacement for Putzmeister Concrete Pump

Selling Units	Single item	Single package size	100X100X100 cm
Single gross weight	100.0 kg

Quantity (pieces)	1 – 1	>1
Lead time (days)	7	To be negotiated

Fixed displacement axial piston motor A2FE (flange-mounted type) for high-performance hydraulic drive systems
Displacement options: 28 / 45 / 56 / 90 / 107 / 125 / 160 cc/rev, covering wide torque and speed requirements
High nominal pressure 350 bar, maximum pressure up to 400 bar for heavy-duty operation
Wide optional speed range 1200~8000 rpm, suitable for both low-speed high-torque and high-speed applications
Bent-axis axial piston design ensures high power density and excellent mechanical efficiency
Direct flange mounting structure allows compact integration with gearboxes and drive units
High starting torque and smooth running for stable and precise motion control
Low internal leakage and reduced heat generation improve system efficiency and reliability
Robust rotating group and reinforced housing for long service life under continuous load
Compatible as a Rexroth A2FE replacement, ideal for OEM and aftermarket applications
